iSmartTool 601TT

• Brand: SmartSafe
• Product Code: iSmartTool 601TT
• Availability: 10
• Weight: 1.50kg
• Length: 295.00mm
• Width: 102.00mm
• Height: 320.00mm

Description:

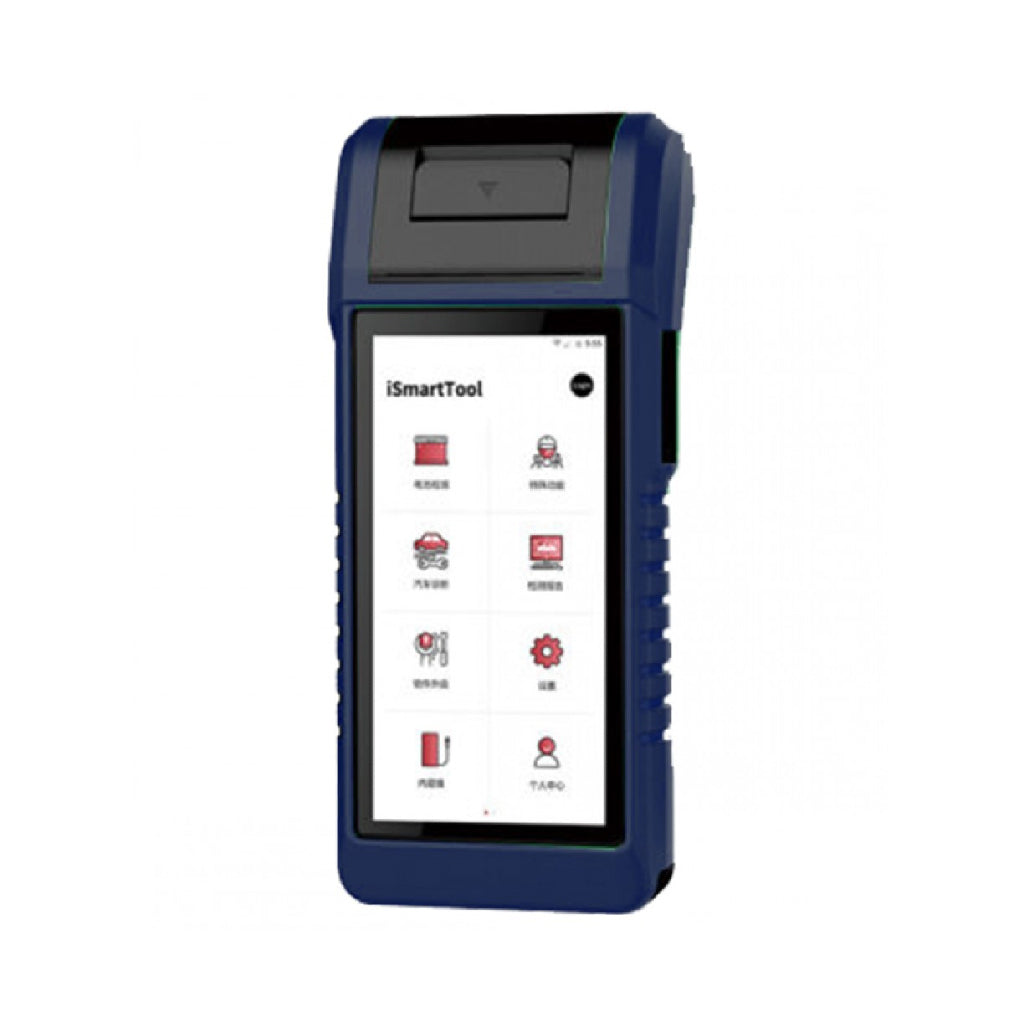

SmartSafe iSmartTool 601TT is Battery & Tire pressure &diagnose integrated handheld automobile testing tool. It is the The first smart automobile testing tool, with diagnose, battery, tire pressure, print and endoscope integrated. Moreover iSmartTool 601TT is middle-end automobile testing tool, supporting diagnose protocol as CAN FD and DolP without expansion joint.

Features:

• The handheld vehicle intelligent detection tool integrating diagnosis, battery detection, tire pressure detection and printer can expand the endoscope module to meet the different business needs of the maintenance plant.
•  Advanced conductance technology is adopted to conveniently, quickly and accurately measure the actual cold starting current and battery health of automobile starting battery and quickly detect the common faults of automobile starting system and charging system.
• It can test all automotive starting lead-acid batteries, including ordinary lead-acid batteries, AGM flat batteries, AGM winding batteries, colloidal batteries etc.it supports common battery standard tests, such as CCA, BCI, CA, MCA, JIS, DIN, IEC, en, SAE and GB.
• The bad cell can be detected directly; directly test the battery with power loss and there is no need to fully charge it before testing.
• Polarity reverse connection protection function, battery clamp reverse connection will not damage the equipment, nor will it have any adverse impact on the car and battery.
• All 315MHz/433MHz tire pressure sensors can be activated and matched.
• The test report can be printed directly through the built-in thermal printer, or shared by email to provide online report viewing.
• It supports the whole system diagnosis function of more than 100 automobile brands in Europe, America, Asia and China, more than 20 common maintenance special functions, and CAN FD, DoIP and other diagnosis protocols.

Specification:

Maintenance Functions:

1. Brake Reset
2. Oil Reset
3. Battery Reset
4. Bleeding
5. Electronic Throttle Relearn
6. TPMS Reset
7. DPF Reset
8. AFS Reset
9. EGR Adaptation
10. Gear Learn
11. Gearbox Learn
12. IMMO
13. Injector
14. Sun Roof
15. SUS Reset
