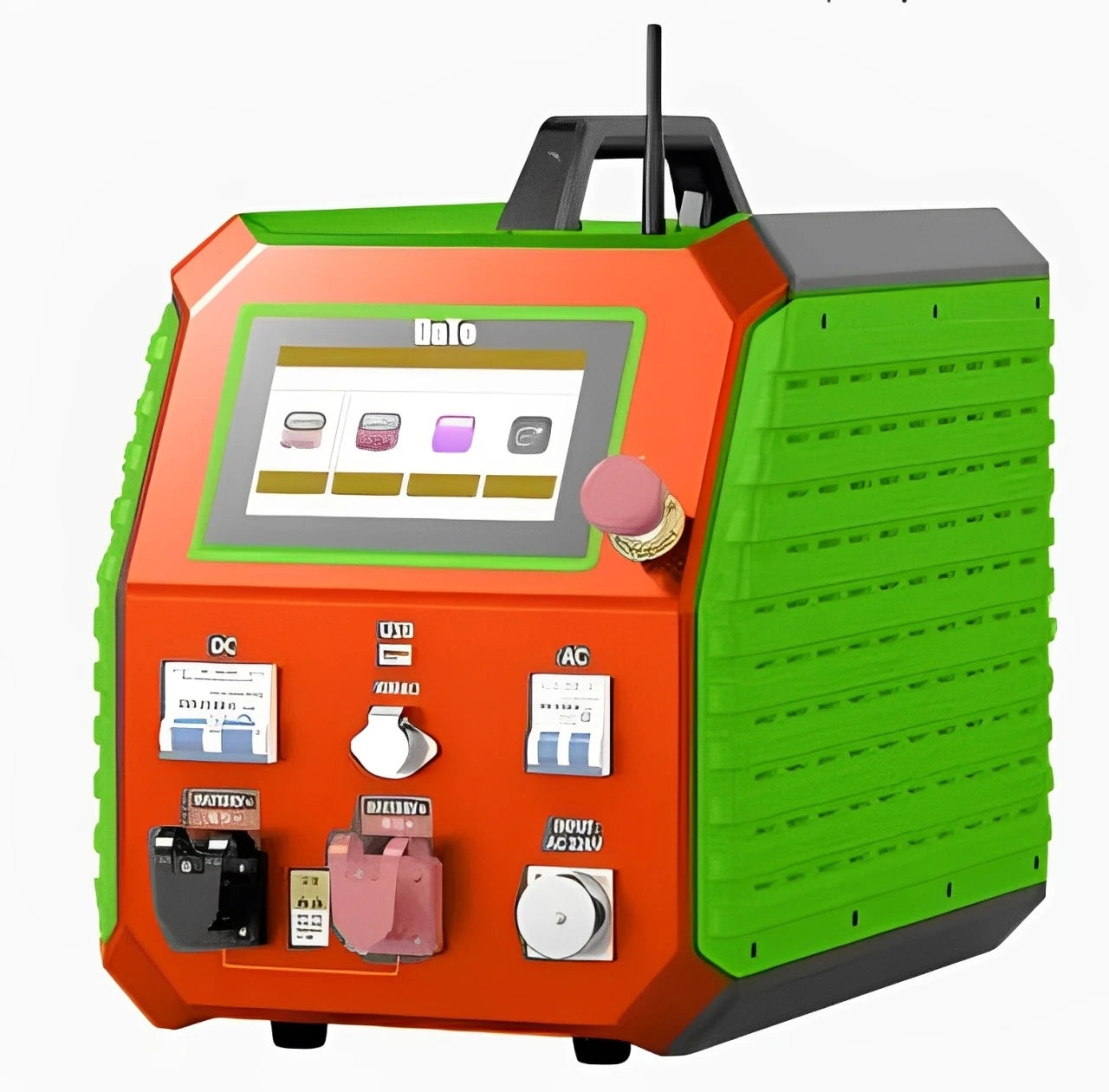

EVCD 260 Battery Module Discharging Integrated Machine – Safe & Intelligent EV Battery Discharge System
Pickup available at INDUSTRIAL AREA 2, STREET NO 18, SHARJAH, UAE
Usually ready in 24 hours
Order on WhatsApp
Details
The EVCD 260 Battery Module Discharging Integrated Machine is a high-efficiency solution designed to safely discharge EV battery modules during maintenance, testing, or decommissioning. Engineered for professional EV workshops, battery recycling centers, and R&D labs, this integrated system ensures controlled discharging to prevent overheating, overcurrent, or battery damage.
With smart temperature control, real-time voltage/current monitoring, and automated safety protocols, the EVCD 260 supports stable, low-resistance discharging for a wide range of lithium-ion battery modules. Its compact, portable design makes it easy to integrate into any EV maintenance workflow.
Key Features:
-
Safe & Controlled Discharging – Ideal for EV battery modules
-
Real-Time Monitoring – Displays voltage, current & temperature
-
Smart Overload Protection – Prevents damage during discharging
-
Low Resistance Load Design – Ensures stable energy release
-
User-Friendly Interface – Easy setup and operation
-
Compact & Mobile – Perfect for EV repair centers and labs
-
Supports Battery Recycling & End-of-Life Processing
Ensure safe handling and extend the life cycle of EV battery systems with the EVCD 260 – your intelligent solution for battery discharge management.
| Specification |
| WORKING POWER SUPPLY |
SINGLE-PHASE THERE-WIRE AC220 V |
|
FREQUENCY RANGE |
40~60 Hz |
|
DISPLAY |
7-inCH TFTLCD SCREEN, RESOLUTION 800X480 |
|
DATA COMMUNICATION |
CANRs 485 |
|
GROUP TERMINAL VOLTAGE ACCURACY |
≤‡0.5%FS+0.3V, resolution : 0.1V |
|
SINGLE VOLTAGE ACCURACY |
≤‡0.1%FS+5mV, resolution: 0.001V |
|
TEST CURRENT ACCURACY |
<+1%FS+0.2A, resolution : 0.1A |
|
CHARAGE AND DISCHARAGE VOLTAGE RANGE |
DC2~260V |
|
CHARAGE CURRENT RANGE |
Maximum current 100A, maximum power 4.4kW |
|
CHARAGE CONTROL |
Max current: 150A / max power : 7.2kW |
|
DISCHARGE CURRENT RANGE |
Constant current charging + constant voltage charging |
|
DISCHARGE MODE |
Constant current discharge |
|
CHARAGE DISCHARAGE PROTECTION |
Over charge and over-discharge protection, OVER-HIGH TEMPERATURE PROTECTION |
