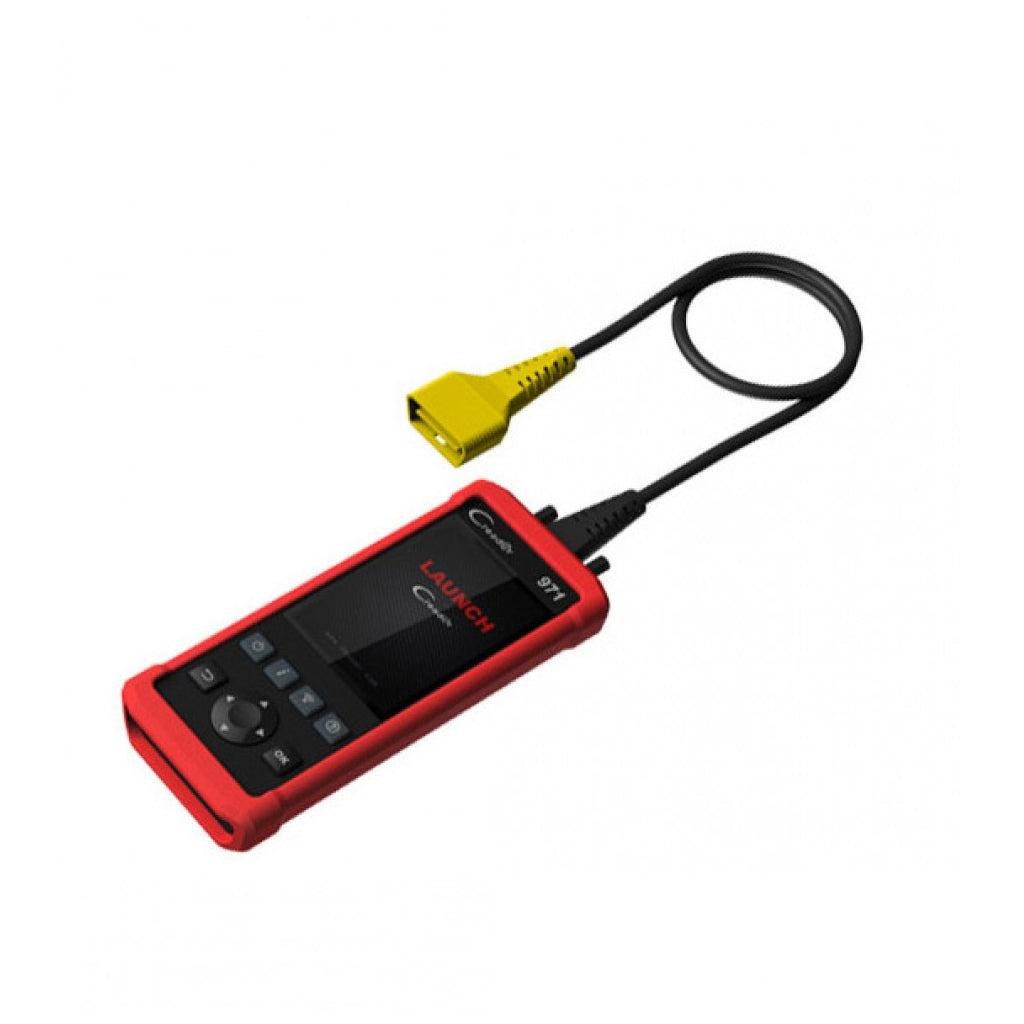

Launch Creader 971 TPMS - CR971

Launch CReader 971 TPMS - CR971

Supports Tire Pressure Programming

Launch Creader 971 TPMS - CR971  is an activation and diagnostic tool for the TPMS system. Moreover Launch CReader 971 TPMS - CR971 uses high/low radio frequency to activate and read tire pressure sensor information and uses the OBD interface to reset the TPMS modules. And Operation is needed when tire sensors are replaced and TPMS DTCs need to be cleared.

FEATURES:

Brand-new process design: Color screen and light weight. Connector with unique protection design to prevent fractur User-friendly shortcut keys to enhance the work efficiency,

• Compatible with all existing sensor types
• Use 125 KHz modulating wave signal to activate sensor
• Receive 315MHz/433MHz RF signals
• Read and clear TPMS DTCs
• Charge and discharge lithium battery, indicate battery status
• Read sensor ID, tire pressure and temperature
• Turn on and off TPMS MIL
• Read and write sensor ID via OBD interface
• Display status of four wheels graphically
• Remote key detection

SPECIFICATIONS:

1. Screen: 4.0” TFT 320*480 dpi
2. Voltage range: 9-18V
3. Operating Temperature: 0℃~ 50℃
4. Environment Temperature: -20℃~70℃
5. Dimension: 195mm*86mm*32 mm (7.6 ” *3.4 ” *1.2 ”)
6. Weight:< 460g
